Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B

  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
Место происхождения КИТАЙ
Фирменное наименование For Crown
Номер модели Для Короны
Количество мин заказа 1
Упаковывая детали Упаковка
Время доставки 1 рабочий день
Условия оплаты T/T, Western Union, Moneygram
Поставка способности 1000

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Модель Для интерфейса Crown CAN Название модели Для Короны
Источник Материк Китай Качество Начальство
Версия программного обеспечения версия 5.33 поддерживает модели Все вилочные погрузчики
Имя для инструмента диагностики короны Тип предмета Автомобильные диагностические кабели и соединители
автомобильный диагностический инструмент Для кроны RCAN -USB CAN Interface Hardware Version Для Pcan Crown CAN
Ключ Устройство для сканирования кроны погрузчика Ключ 1 Программное обеспечение для ремонта короны
Название элемента Для Pcan инструмент диагностики короны Ключ 2 Руководство по ремонту Crown Parts Каталог и сервис
Фирменное наименование Auto Forklift for Crown Scan tools
Выделить

Version 5.33 Forklift Diagnostic Tool

,

ISO 11898-2 Crown RCAN USB Interface

,

CAN Specifications 2.0A and 2.0B PCAN-USB Adapter
Оставьте сообщение
Характер продукции

Forklift Coach Lift-Truck Truck Diagnostic Tool Crown Rcan Pcan USB Can Diagnostic Cable For Toyota Crown Peak System

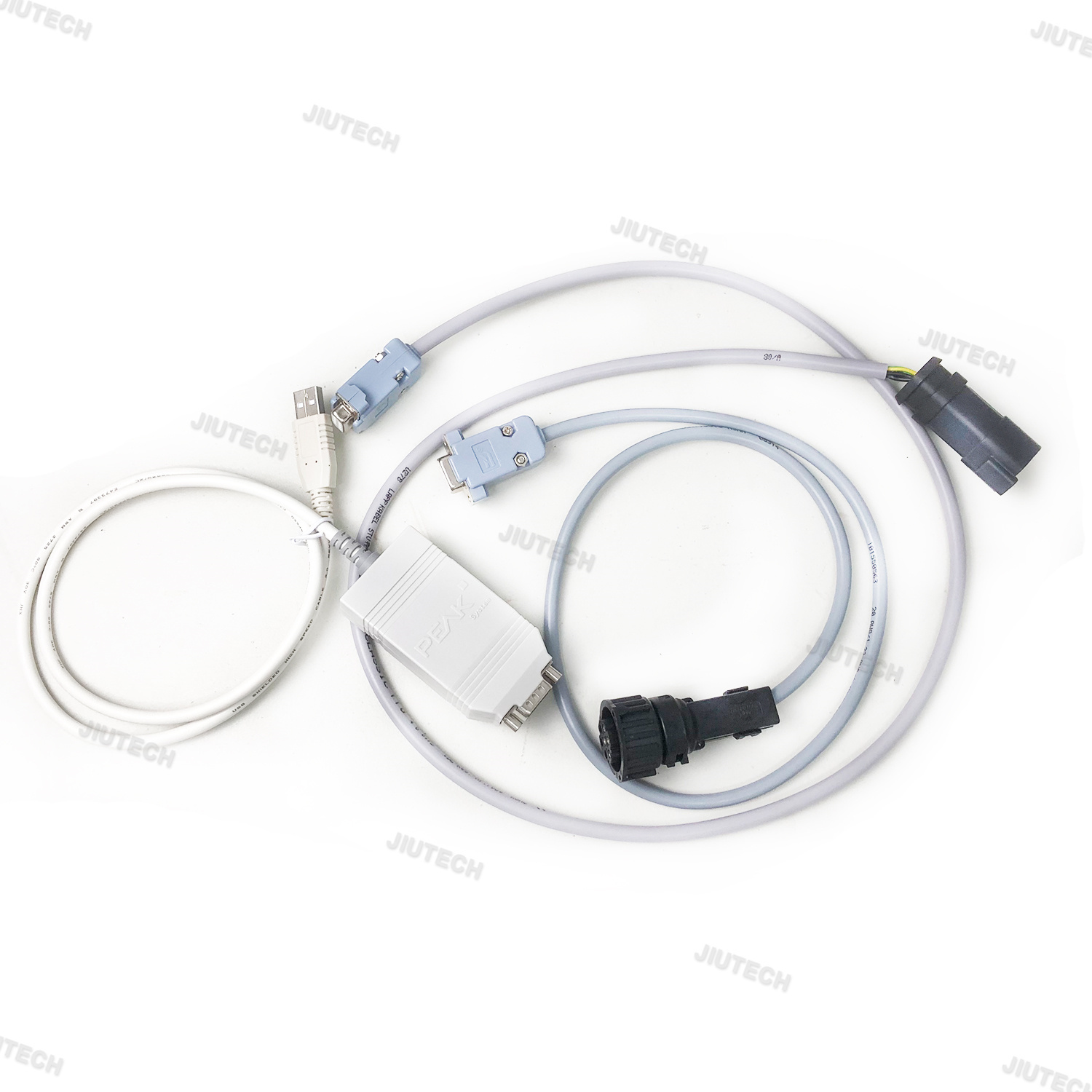

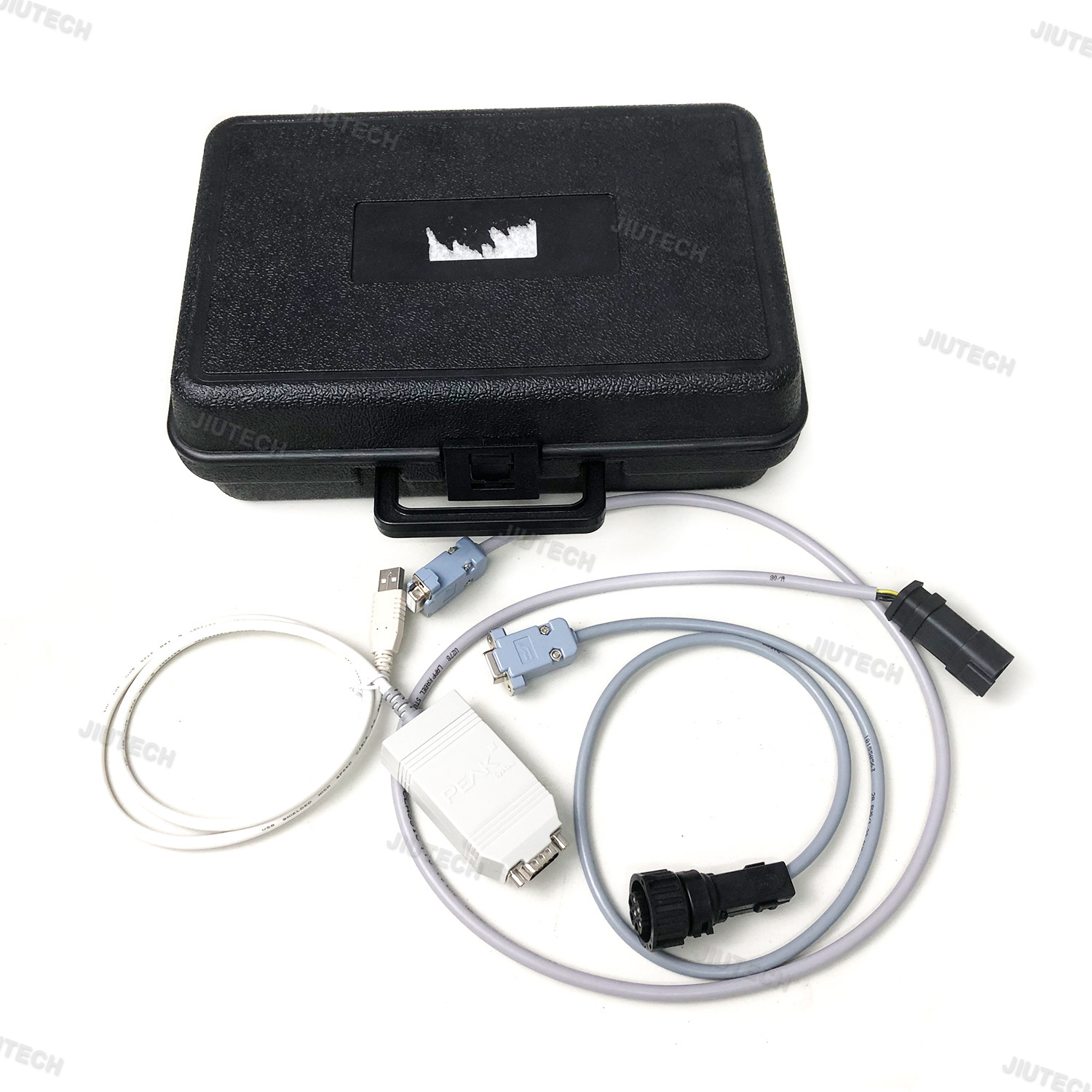

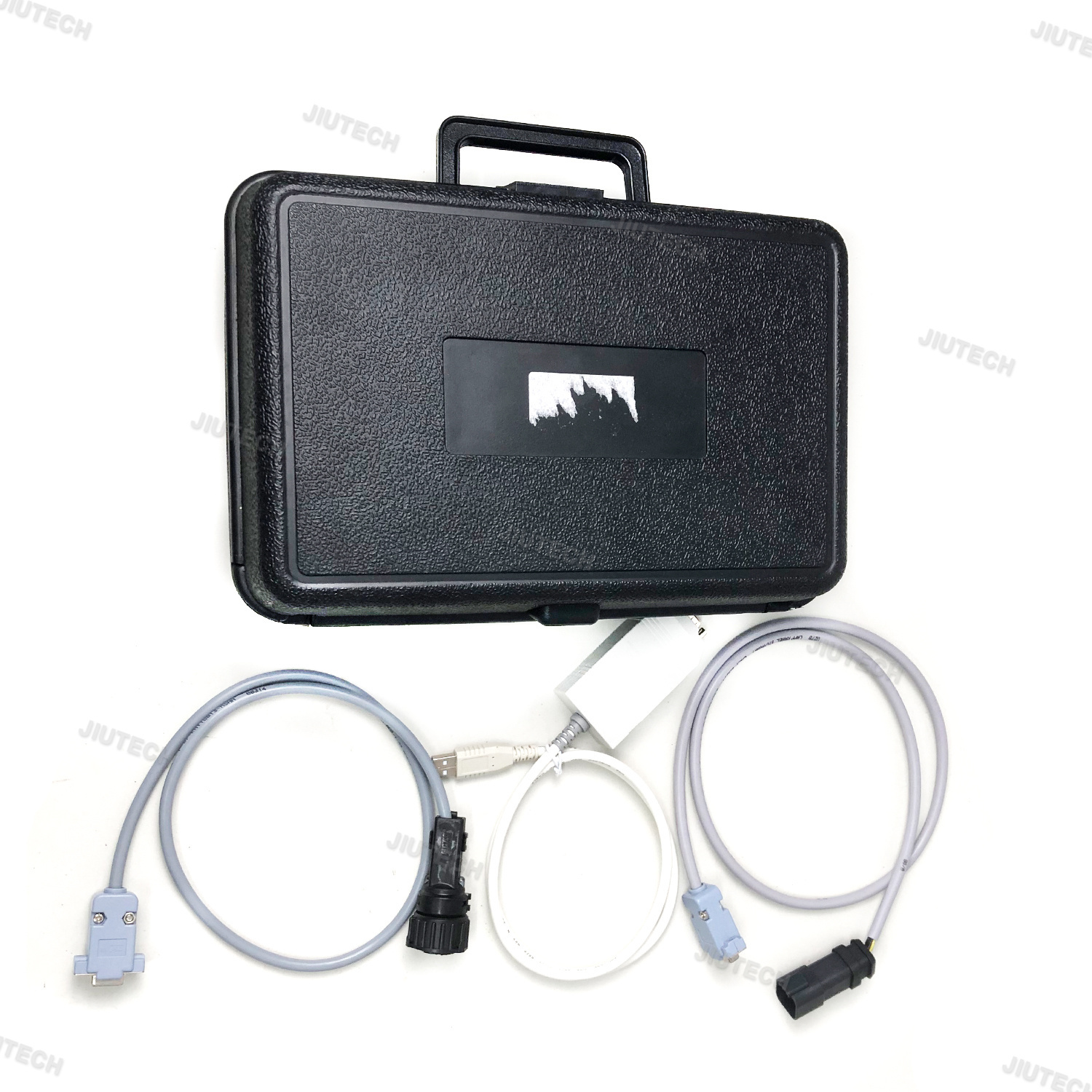

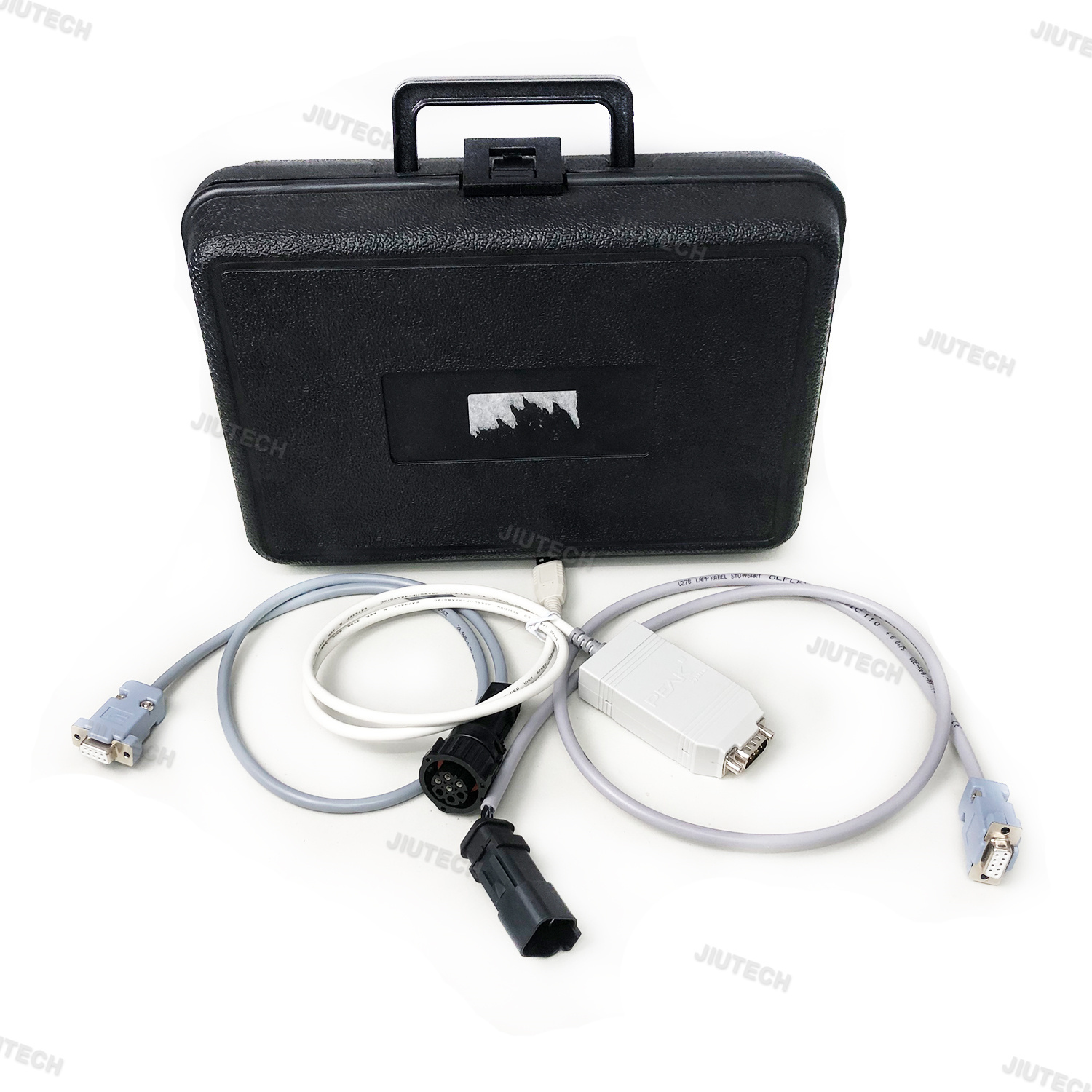

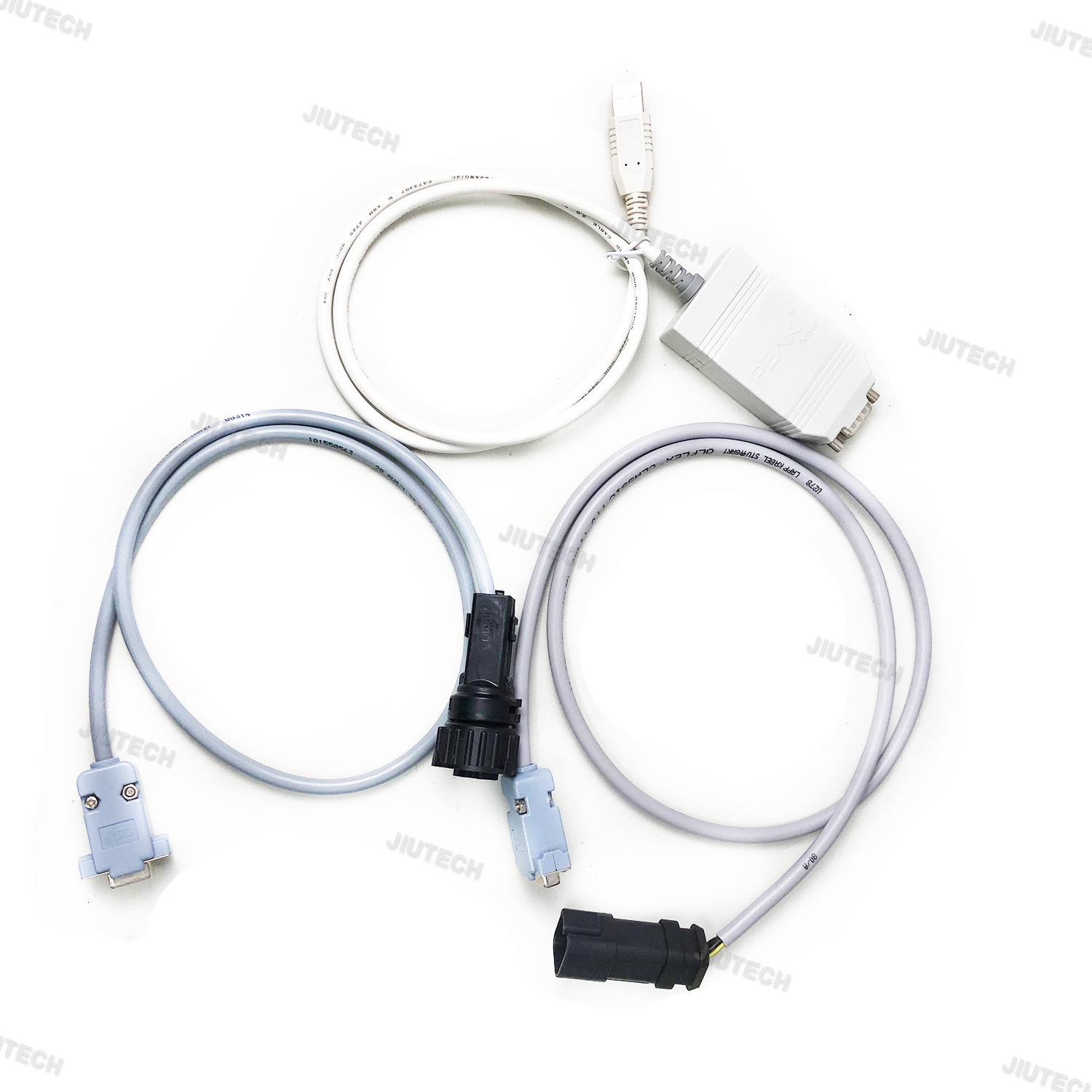

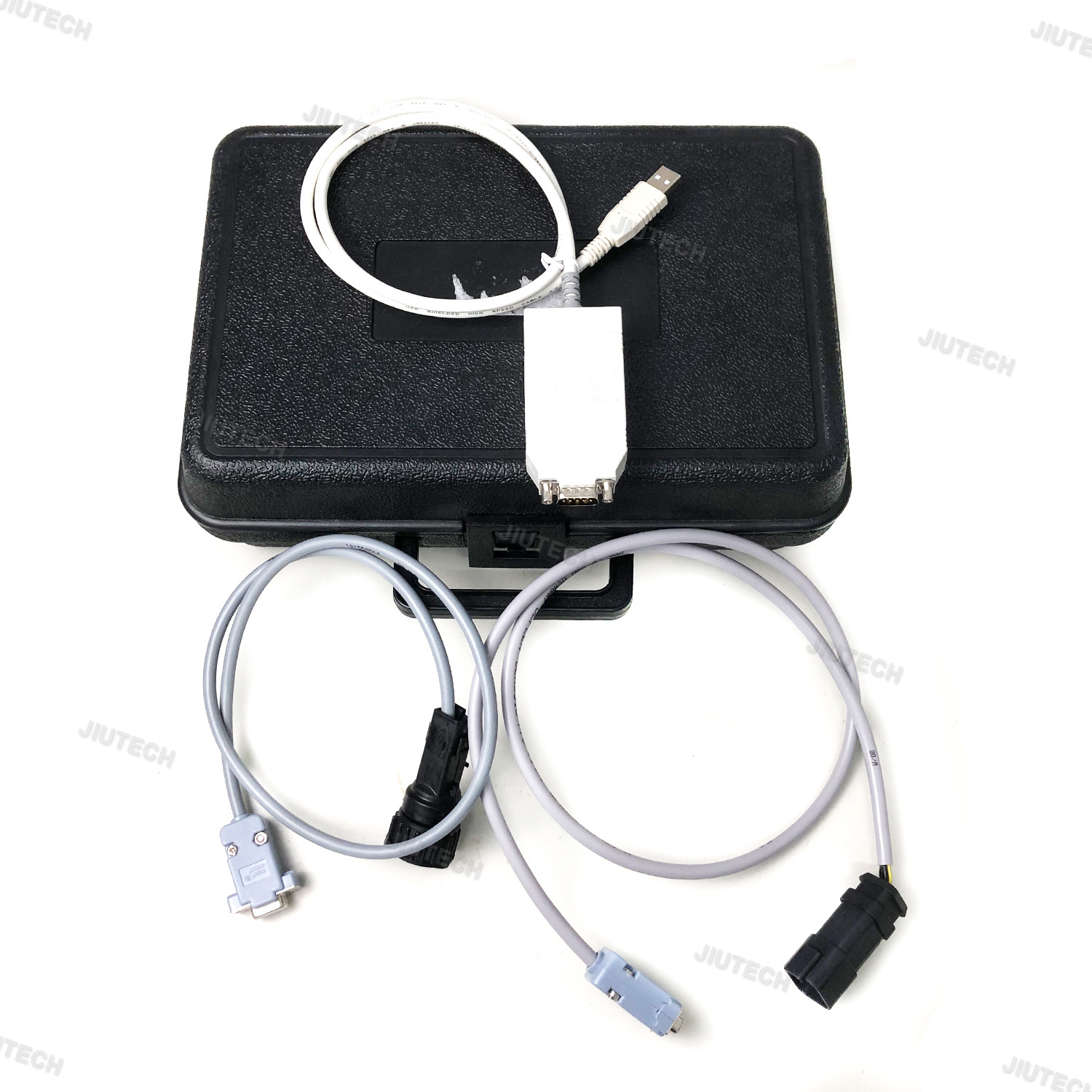

Package List :



1* Crown USB adapter



1* Can cable



1* cd diagnostic software



Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 0Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 1Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 2

Please Note: if you need repair manual need to be purchased separately



supports models:All crown forklifts

Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 3



Description:
The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.



Technical Specifications :

Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
High-speed CAN connection (ISO 11898-2)
Bit rates from 5 kbit/s up to 1 Mbit/s
Time stamp resolution approx. 42 µs
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)

CAN bus connection via D-Sub, 9-pin (in accordance with CiA 106)
N-XP SJA1000 CAN controller, 16 MHz clock frequency
N-XP PCA82C251 CAN transceiver
Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
CAN termination can be activated through a solder jumper
5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 4Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 5Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 6Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 7Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 8We also have other forklifts: linde , still, yale hystre, cat, mitsubishi, judit

Can be installed in a computer

The following is the installed interface diagram:

Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 9
