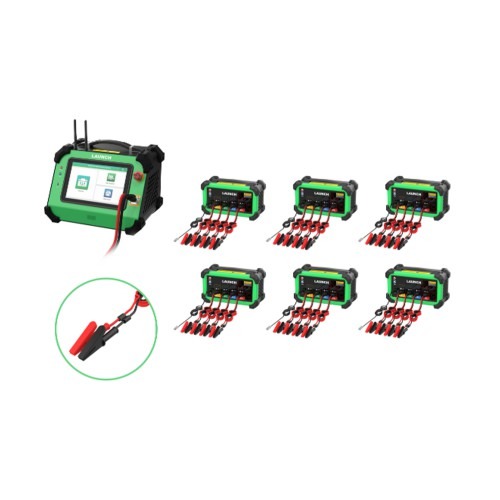

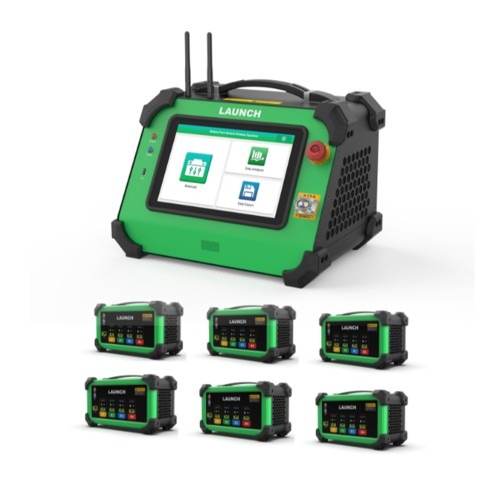

LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer(24 Channels)

  • LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer(24 Channels)
  • LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer(24 Channels)
  • LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer(24 Channels)
  • LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer(24 Channels)
Место происхождения Китай
Фирменное наименование Launch
Номер модели ЗАПУСК EVB624 Беспроводной эквалайзер ячеек аккумуляторной батареи EV (24 канала)
Количество мин заказа 1
Цена $3299
Упаковывая детали 70,0 кг
Время доставки 1 рабочий день
Условия оплаты T/T, Western Union, MoneyGram
Поставка способности 1000

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Наименование модели ЗАПУСК EVB624 Беспроводной эквалайзер ячеек аккумуляторной батареи EV (24 канала) Происхождение Континентальный Китай
Качество Высший
Выделить

LAUNCH EVB624 Wireless Equalizer

,

Battery Pack Wireless Equalizer

,

Cell Wireless Equalizer
Оставьте сообщение
Характер продукции

Product Description

The EVB624 is used for balancing the internal cells of battery packs. When detecting significant voltage variance or inconsistent cell voltages among cells within battery packs, use the EVB624 to address the issue of excessive voltage variance. Once the cells inside the battery module are replaced, the EVB624 is widely used to balance the cells, ensuring that the voltage levels of individual cells are uniform.
LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer(24 Channels)

The EVB624 is used for balancing the internal cells of battery packs. When detecting significant voltage variance or inconsistent cell voltages among cells within battery packs, use the EVB624 to address the issue of excessive voltage variance. Once the cells inside the battery module are replaced, the EVB624 is widely used to balance the cells, ensuring that the voltage levels of individual cells are uniform.

Product Features:

1. Charging Unit + 6 Discharging Units
2. Separate charging and discharging design, with balancer channels freely combinable, supporting simultaneous balancing of up to 24 battery cells. (Each discharge unit supports 4 channels).
3. Wireless networking communication facilitates the expansion of balancer channel quantity.
4. Compatible with all common lithium battery types on the market.
5. Supports two modes: charge&discharge balance and discharge balance.
6. High-precision voltage acquisition module for safe and precise balancing control.
7. Each battery cell is wired separately and independently, effectively avoiding connection errors.
8. Safety Protections: Overvoltage, undervoltage, overcurrent, output short circuit, reverse connection, overtemperature, etc.
Product Specifications:

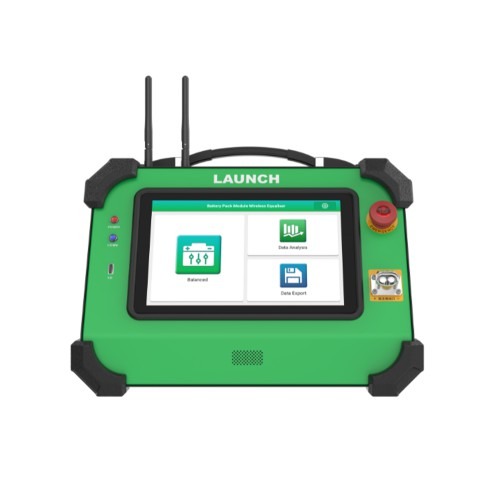

Charging Unit:

Power input: AC90-264V, 50Hz/60Hz
Output Voltage Range: DC0~112V
Output Voltage Accuracy:≤±1%@48-112VDC,
≤±0.5V@10-48VDC
Output Current Accuracy:≤±1%@output＞4A
Output Current Range: 1~40A
Display: 10.1”LCD touch screen
Dimensions: 381*270*275(mm)

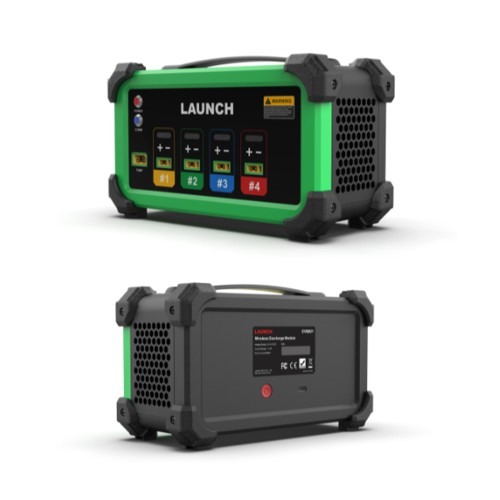

Discharge Unit

Number of channels: 4 channels
Discharge Voltage Range: DC2.89~4.2V
Discharge Current Range: 1-10A
Voltage Measurement Accuracy:＜±1%@48-112VDC,
≤±0.5V@10-48VDC
Current Measurement Accuracy:≤±1%@output＞4A
Communication Method: Wi-Fi, BT
Dimensions: 215*100*130(mm)

Package includes:

1pc x charging unit
6pcs x discharging units
1pc x AC power cord
1pc x DC high-voltage
1pc x output cable
1pc x equalizer test cable
1pc x temperature acquisition cable
LAUNCH EVB624 EV Battery Pack Cell Wireless Equalizer(24 Channels) 0
