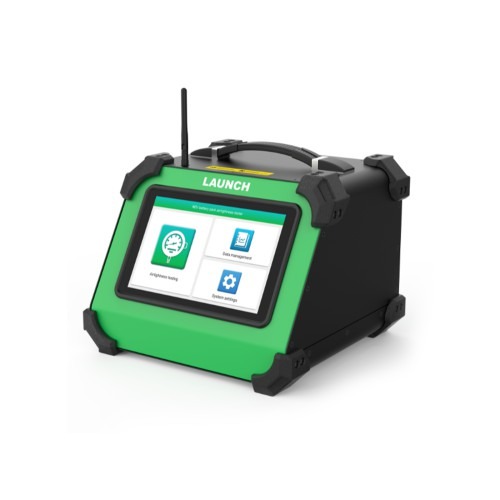

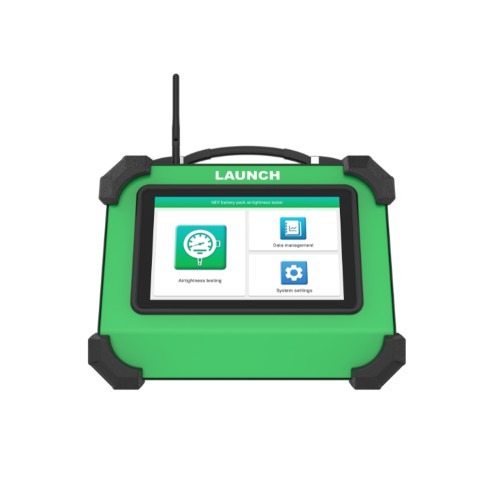

LAUNCH EVT511 EV Battery Airtightness Detector

  • LAUNCH EVT511 EV Battery Airtightness Detector
  • LAUNCH EVT511 EV Battery Airtightness Detector
Место происхождения Китай
Фирменное наименование Launch
Номер модели ДЕТЕКТОР ПРОБЛЕМИРОВАНИЯ БАТАРИИ EVT511
Количество мин заказа 1
Цена $1699
Упаковывая детали 70,0 кг
Время доставки 1 рабочий день
Условия оплаты T/T, Western Union, MoneyGram
Поставка способности 1000

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Наименование модели ДЕТЕКТОР ПРОБЛЕМИРОВАНИЯ БАТАРИИ EVT511 Происхождение Континентальный Китай
Качество Высший
Выделить

LAUNCH EVT511 Airtightness Detector

,

EV Battery Airtightness Detector
Оставьте сообщение
Характер продукции

Product Description

After the repair of the battery or modules inside the battery pack is completed, it is necessary to conduct a sealing test before installation. Without this test, if the sealing is inadequate and the vehicle drives on wet roads, it can easily lead to water ingress into the battery pack, causing internal circuit short circuits and ultimately accidents. Therefore, testing the sealing of the battery pack is a mandatory requirement.
LAUNCH EVT511EV Battery Airtightness Detector

After the repair of the battery or modules inside the battery pack is completed, it is necessary to conduct a sealing test before installation. Without this test, if the sealing is inadequate and the vehicle drives on wet roads, it can easily lead to water ingress into the battery pack, causing internal circuit short circuits and ultimately accidents. Therefore, testing the sealing of the battery pack is a mandatory requirement.

Product Features:

1. Presets battery pack parameters such as:
volume, pressure, stage testing time, leakage limit, etc.
2. High-sensitivity pressure sensing, high testing accuracy and stability.
3. Equipped with a pressure gauge to display real-time pressure curve during the process, making the testing process clear at a glance.
4. Supports multiple languages, including: Traditional Chinese, English, German, French, Japanese, Spanish, Portuguese, Italian, etc.

Low-pressure Airtightness Testing Theory Testing Theory

The compressed air is used as the medium to apply a certain pressure to the battery pack cavity, and a highly sensitive sensor is used to detect pressure changes to judge its sealing.

Product Specifications:

Power: 20W (Max)
Test Pressure Range: 0~30Kpa
Sensor Resolution: 1Pa
Test Accuracy: ±5pa
Communication Interface: RS485
Display: 10.1'' LCD screen
Data Storage Method: Internal storage or data upload to USB drive
Power Supply: AC90~264V, 50Hz/60Hz
Air Source Requirements: 0.1~1.0 Mpa dry compressed air
Intake Port/Test Port: φ6mm/φ6mm
Working Temperature/Hhumidity: -10~55°C/10%~90% @25°C
Dimension: 349*329*366.5 (mm)
Weight: 4.0kg
Package includes:

1pc x LAUNCH EVT511EV Battery Airtightness Detector
